Question
How to download log files from the myQA StarTrack3 measurement device?
Answer
To download the log files, please follow the steps below:
Step 1
Connect your myQA StarTrack3 Device directly via Ethernet to your Computer.
Step 2
Switch the device on and wait until the power button LED lights green
Then short press (<1s) the config-button using a small tool. The Activity LED now starts to blink.
Step 3
Open the myQA StarTrack3 Configuration Web URL http://startrack3-[s/n].local/ (where [s/n] to be replaced by the device serial number

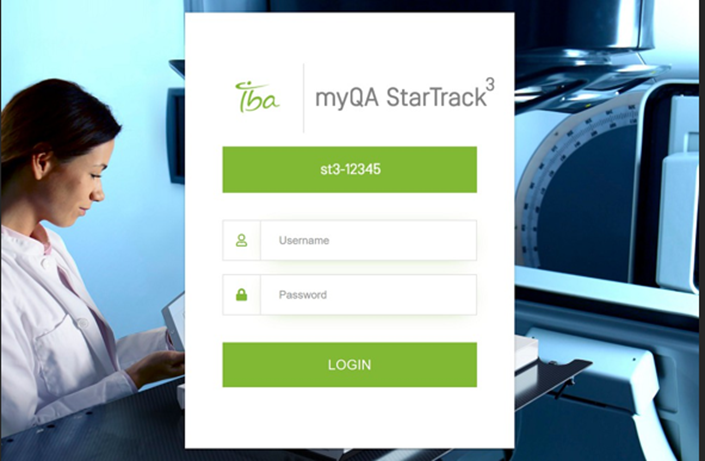

The myQA StarTrack3 Configuration Web Interface opens:
Step 4
Enter username, “admin”, password, (default: “admin”), and click LOGIN.
In the Navigation Panel on upper left corner select "Download Logs"

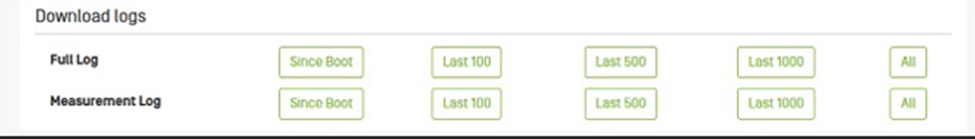

Step 5
Select your preferred log file by clicking "Download"
