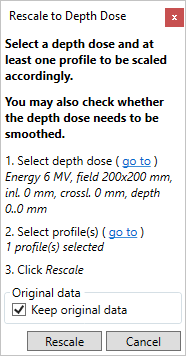

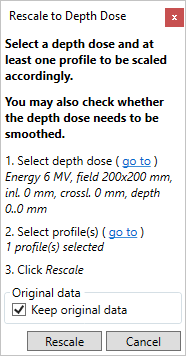

In this dialog, the profiles can be rescaled based on a selected depth dose curve.
First, the depth dose curve is scaled such that the Dmax is at 100% relative dose. The resulted factor is used to scale the selected profiles.
The depth dose curve and the profiles to be scaled must have the same values for the following parameters:
-
Field size
-
Energy
-
Radiation type
-
Profile scan type
Procedure to rescale a measurement or a group of measurements to the depth dose:
- Click to open the dialog.
- In step 1, click go to, and then select a depth dose curve in the Depth-Dose view.
- In step 2, click go to, and then select the profiles to be rescaled.
- Optionally, select Keep original data (recommended)
- Click Rescale.
