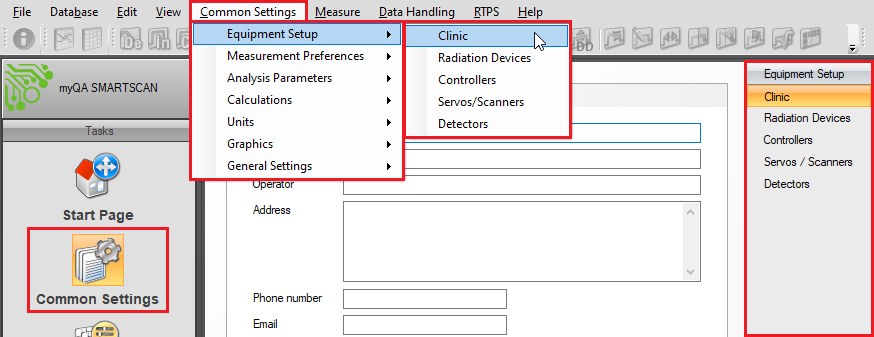

By clicking the Common Settings icon, , in the Tasks navigation panel, the Common Settings page opens.
On the right side of the navigation panel, select the desired parameter category and then select a sub-category, this group of parameters are displayed.

It can be also done by clicking the Common Settings menu, selecting the desired parameter category and finally a sub-menu.

The Common Settings page can be opened with the Common Settings menu on any other Tasks page.

Under Common Settings - Equipment Setup, there are the following setting pages:

Clinic
Radiation Devices
Controllers
Servos / Scanners
Detectors

Common used button: New, Edit, Copy, and Delete

Button	Function
New	Click this button to create a new item.
Edit	Change an item.
Copy	Select an item from the list, then click the copy button; a copy of this item including its parameters is created.
Delete	Click to select an item from the list, and then press the Delete button. This item and all of its corresponding entries are deleted.

For the actions in the table, the Undo or Redo buttons can be applied.

Clinic

Click the Equipment - Clinic, and then enter the contract information into the relevant field.

Controllers

The Common Control Units (CCU-X and CCU) consist of a controller and an electrometer. The controller in the CCU controls both the movement of the servo and the electrometer in itself.

Setup for CCU-X

Ports necessary for full functionality of CCU-X:

TCP: Port 1338 outbound towards CCU-X (HTTPS)
UDP: Port 5353 inbound from CCU-X (multicast DNS)

Note: Additional information on the CCU-X device can be found in myQA Blue Phantom3 Instructions for Use.

CAUTION: NETWORK SECURITY
If the CCU-X is connected to a clinical network, the healthcare provider shall ensure that network protection measures are in place protecting the network from unauthorized access.

WARNING: CCU-X TLS CERTIFICATE NOT CHECKED BY MYQA ACCEPT
The TLS certificate of the CCU-X is not checked by myQA Accept. This could allow an attacker with access to the network to place a rogue device to hijack the connection and intercept traffic between myQA Accept and CCU-X (e.g., by issuing mDNS responses faster than an original CCU-X, causing myQA Accept to connect to the rogue device rather than the original CCU-X).

CAUTION: PHYSICAL ACCESS CONTROL (OPERATION AND STORAGE)
The health care provider shall ensure that the device is not kept in public spaces. Access to the premises where the device is located, shall always be controlled by appropriate technical / organizational means (e.g., using badges).

WARNING: RESTART THE DEVICE IF ERROR OCCURS
Do not perform measurements while the device is in an error state.
Please restart the device. If the error persists, contact the service department (Section 14.1).

Logging in to CCU-X – Web-browser

By default, the hostname of CCU-X is “ccux-[S/N]”. The device serial number (S/N) is a 5-digit number and can be found on the device information label on bottom of the device. This label also contains two URLs for initial configuration http://matrixx-[S/N].local/ or http://169.254.22.11/.

Note: If the device is connected to a network without a DHCP-Server, no static IP-Address is configured. A link-local address (LLADR) from the 169.254.xx.yy Pool is used (Subnetmask 255.255.0.0). The first address to try is 169.254.22.11.

Connect the device to the PC with an Ethernet cable.
Switch on the device and wait until the power button LED lights green.
Short press (< 1 s) the Config button on the device. The Activity LED starts to blink.
There are three options to open configuration web interface:

a. Recommended: via URL https://169.254.22.11/ (valid if the device is connected to the PC with a direct cable connection or if no DHCP server exists on the local network)

b. via URL https://matrixxair-[s/n].local/ ([s/n] to be replaced by the device serial number; fixed IP
address - same network mask)

c. via Windows Explorer

Click to expand the Network browser, and then double-click the device name.

CCU-X device name in the Network node in Windows Explorer

Note: If the device name cannot be found, check whether the Windows Network Discovery is enabled.

The LOGIN dialog of the configuration web-interface opens:

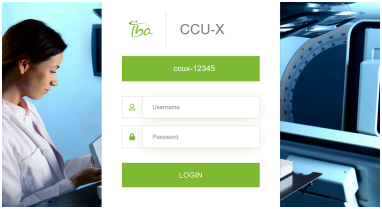

CCU-X- configuration web-interface - LOGIN dialog
Enter the user name (admin) and password, and click LOGIN. The Device Info page opens.
CAUTION: DEVICE SPECIFIC PASSWORD IS PROVIDED BY IBA
The device specific password is shipped in a sealed envelope. In case the device is delivered with and already opened envelope, the device might be compromised. Do not connect it to your network or use it and reach out to IBA Service (Section 14.1).

CCU-X- Configuration web-interface - Device Info page (example)
The hostname (or device name) and friendly name can be updated in the Change Hostname section.
Note: If the hostname is changed, the new hostname is taken into account only after restarting the device (powered off and back powered on).
Click the Apply button after entering the new information.
It is recommended to change the provided password after the first login. Go to the Change password section the update the password.
IMPORTANT NOTICE: CHANGE PASSWORD AFTER FIRST LOGIN
For security reasons, change the password after the first login to the web-interface.
Click the Change button after entering the new information.
Click the Navigation icon in the upper-left corner (1) to expand the Navigation panel:

CCU-X configuration web-interface - Navigation panel
Different pages can be accessed by clicking the page name on the Navigation panel for different
configuration tasks.
Click Licenses is to see the open source licenses (see Section 12.3).

Configuration of Wireless Communication

When used in wireless mode (standard operations) the CCU-X provides wireless networking according to
IEEE-802.11 for standard operations. The Wireless IP Address and the Wireless MAC Address can be found on the Device Info page of the web interface.

Click Configure Wireless in the Navigation panel to open the page.

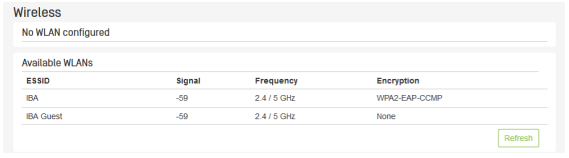

Section Available WLANs lists the WLANs in the range of the device. Select the WLAN to be used.
Enter the authentication information for the WLAN in the Connect section and then click the Connect button.
In the WLAN IPv4 and WLAN IPv6 sections, the current WLAN IP settings and the connection status are displayed.

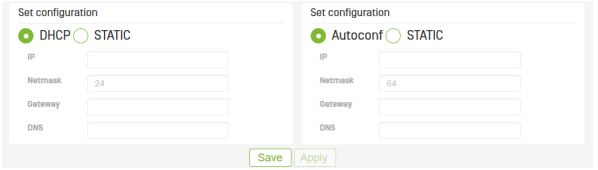

In the Set configuration group, select the DHCP (selected by default) or STATIC round button for the IP address configuration.
If the configuration was changed, click Save.

Configuration of Wired Communication

When used in wired mode (optional) the CCU-X provides 10/100/100 MBit wired networking according to
IEEE-802.3. The Ethernet IP Address and the Ethernet MAC Address can be found on the Device Info page of the web interface.

Click Configure Ethernet (wired) in the Navigation panel on the left to open the page.
The sections for Ethernet IPv4 and Ethernet IPv6 shows the current Ethernet IP settings.
In the Set Configuration section, select DHCP (selected by default) or static IP configuration.
If the configuration was changed, click on Save.

Update Firmware

It is recommended always installing the latest firmware versions on the IBA Dosimetry measurement
devices as in general they improve the overall reliability, measurement accuracy, and IT security of the
measurement system. If there is a new version of FW available for the device, you will be informed by IBA
Dosimetry via an email.

Download the latest version of firmware via IBA Service Portal: https://iba-portal.com (also see the ticket received for the exact link).
Click System Update in the Navigation panel.
Click the Select File button, then browse and select the new FW file.
Click Start Update. The update can take up to five minutes and the device will restart afterwards.
CAUTION: CHECK FIRMWARE VERSION AND CHECKSUM
Before installation of a new firmware version (update), verify the displayed checksum, to ensure the authenticity and integrity of the received firmware file.

Setup for CCU

Ports necessary for full functionality of the CCU:

TCP: 1222, 1227, 51233 (inbound/outbound)
UDP: 1221 (inbound/outbound)

Dynamic TCP range 49152-65535

Alternative: Allow complete app through the firewall

The XXSetup program is a tool for changing the IP address and updating the firmware of the controller.

IMPORTANT NOTICE: CONSULT A LOCAL IT ADMINISTRATOR
It is recommended that the local IT administrator is consulted before connecting the CCU to the local network.

IMPORTANT NOTICE: DIRECT CONNECTION

It is recommended to write down the IP address and the Network mask used to connect the CCU to the network. This information is required to establish a direct connection to the PC.

IMPORTANT NOTICE: FIREWALL
Add the XXSetup tool to the list of applications for which access to the network is
granted.

Open XXSetup

Establish a direct connection to the PC and the CCU using the delivered cross cable.
Click the Windows Start button and then select All programs > IBA Dosimetry > myQA Accept >
XXSetup.

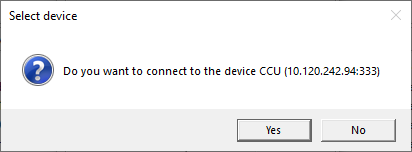

After selecting the XXSetup, you are asked whether you want to connect to the device. Confirm by
clicking Yes.

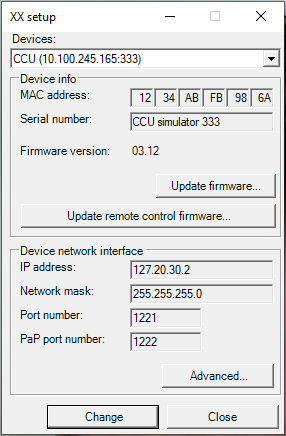

The XXSetup window opens.

Change the IP Address of the CCU

In some cases it is necessary to change the IP address of the CCU controller in order to connect it to the
clinical network.

Click the Change button in the XX setup window shown above. The label of this button becomes Apply changes.
Enter the IP address and the Network mask obtained from your IT department. Click Apply changes to confirm the changes.
If using Gateways to connect the CCU to a network, click the Advanced… button in the Device network interface group to open the Gateway settings.
Enter the gateway information provided by your IT administrator.
- IP Address: Enter the IP address of the gateway at the CCU side
- IP Network: Enter the IP address of the gateway at the PC side
- Network mask: Enter the network mask of the network on the PC side
Click Apply changes, and when prompted, restart the CCU. Close the XX setup tool.
Remove the direct connection cable between the PC and the CCU and connect both the PC and the CCU to the network.
Restore the original network configuration for your computer (the one used before the direct connection to the CCU was established).

Update Firmware

Click the Update firmware… button in the Device info group of the XX setup window.

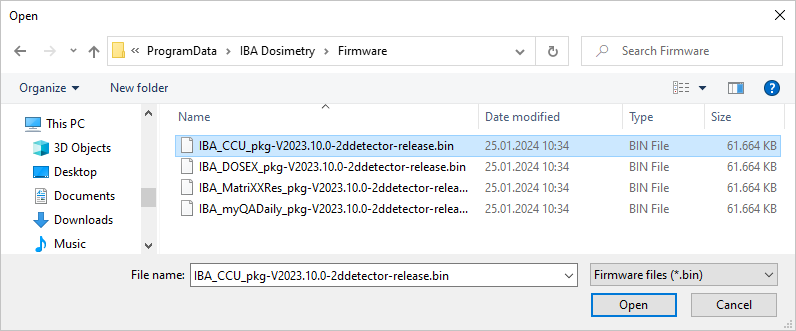

A window opens, asking to search for and open the firmware (*.bin) file.
Select the correct file and click the open button.
Follow the instructions on the screen to finish the firmware update.

Connecting the CCU to myQA Accept

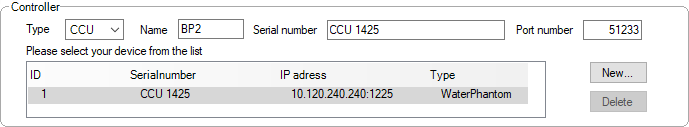

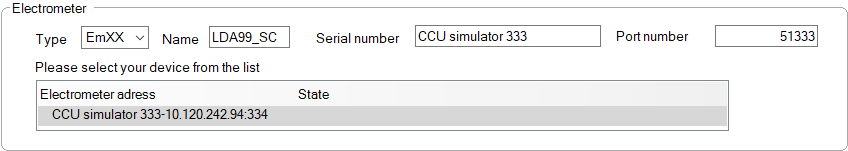

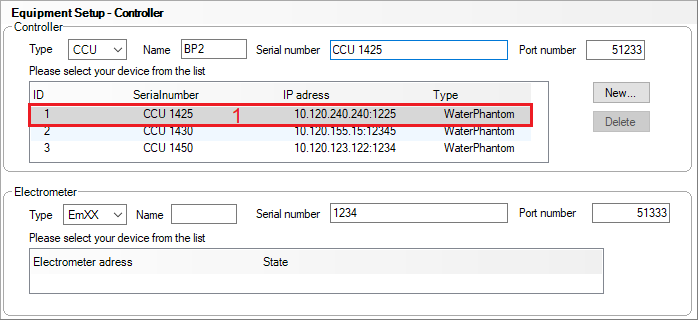

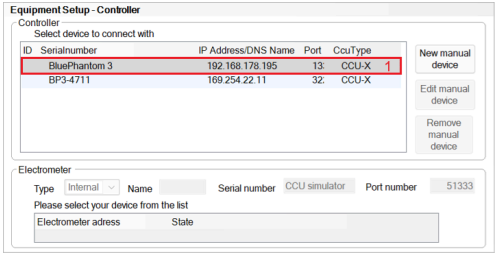

Click the Equipment > Controllers to open the Controllers dialog. It consists of the Controller group and the Electrometer group.
To connect the device to the SW, select to highlight the device in the list (1).
Device with the same subnet as the host PC (CCU-X only):
Only when the CCU-X is online (power on and connected to the network) and has the same subnet as the myQA Accept host PC, it can be "seen" (connected) by the myQA Accept software and therefore is listed in the Controller group, and once the CCU-X is selected, its serial number and IP address will be displayed in the corresponding boxes automatically.
IMPORTANT NOTICE: CONNECTING THE CCU TO THE SOFTWARE
After defining the CCU controller, click this CCU displayed under Controller address to complete the setup.

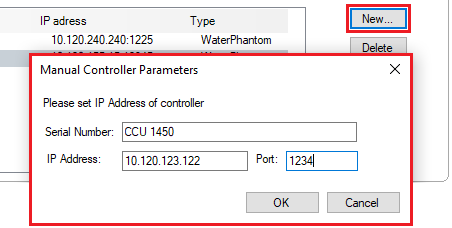

CCU manual connection:
If the SW cannot receive the CCU broadcasting, or the CCU subnet is not on same subnet as the host PC (CCU-X only), or the CCU is not online, you can only connect it to myQA Accept manually:
Click New.
Enter the serial number, IP address, and port number in the Manual Controller Parameters dialog.
Click OK.

CCU-X Calibration

WARNING: NO CALIBRATION PROCEDURE FOR THE TEMPERATURE AND PRESSURE
Currently there is no calibration procedure for the temperature and pressure readings provided from the water phantom and CCU-X, therefore, automatic kTp correction must not be used for absolute measurements. Using the kTp correction for absolute measurement might lead to flawed measurements and potentially patient harm. kTp correction should only be used when performing relative measurements.

See Section 4.2.1.5 for information on manually entering calibration information for detectors.

CAUTION: REGULARLY CHECK ADCL CALIBRATION
For point dose measurements (IEC 60731) regularly check the field electrometer's ADCL calibration. Do not perform point dose measurements (IEC 60731) with an ADCL calibration older than two years. Performing measurements with a calibration older than two years might lead to inaccurate measurements not complying with IEC 60731 standards.

Servos / Scanners

Open the window by clicking Equipment > Servos / Scanners.

Equipment Setup – Servos / Scanners

In the Measurement Device group, select the devices that will be in use from the drop-down list and click the Install button. The devices will appear in the Installed Devices. The selected device in the list of Installed Devices will be the one used by default.
Water Correction Depthwill be displayed automatically according to the chosen device in the Installed Devices box. It is used to compensate the measurement depth for the rise of the water surface (1) due to submerge of the motors.

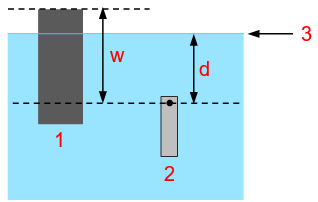

1: Motor, 2: Detector, 3: Water surface

If d ≤ w: correction = d * c/10000,

If d > w: correction = w * c/10000,

where,
- w: the distance from the top of the motor to the detector position.
- d: the distance from the water surface to the detector position.
- c: the water correction factor determined by the area of the selected phantom. It is stored in the device template.
Once the water surface position is saved, automatically, the water correctionwill be calculated, and the depth position will be compensated.

For Blue Phantom Helix, water correction factor is only valid when using designated detector holders.
In the Device Turn Angle group, you can define the orientation of the servo / scanner placement under the accelerator. It is important not to interchange the crossline direction with the inline direction.

Detectors

To define the detectors, click Equipment > Detectors to open the Detectors page. It contains five groups: Installation, Calibration, Effective Point of Measurement and Geometry.

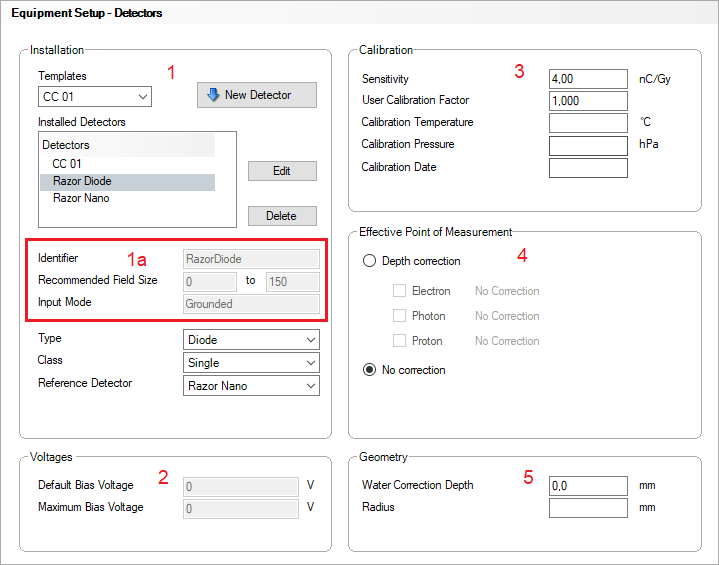

Figure 1. Equipment Setup – Detectors

Caution! : Limitation of the Stealth chamber

The use of the Stealth chamber is only recommended for energies between 6 and 10MV, and for field sizes up to 150 mm × 150 mm.

Installation group (1)

The SW provides a set of detector templates. The template contains the some properties of a detector (see the table below) that cannot be edited but for display (1a).

The table below lists the detector properties related to the in myQA Accept core and SMARTSCAN wizard applications.

The SW provides a set of detector templates. The template contains the some properties of a detector that cannot be edited but for display (1a).

Please see Table 4.3. Detector properties in the detector template in the myQA Accept SW in Section 4.2.1.5 Detectors - Installation Group, myQA Accept Installation Guide.

Procedure to install a detector in the SW:

Chose a detector from the Templates dropdown box, e.g., a CC13 is selected. If the detector is not in the Templates, select a similar one and then edit it as needed.

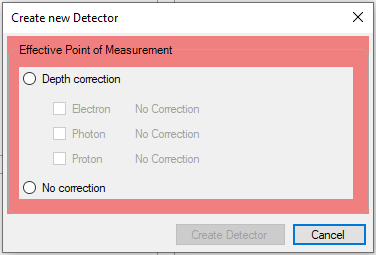

Click New Detector. The Create new Detector - Effective Point of Measurement dialog opens:

Important Notice: Depth Correction
Due to the geometry of chambers, enter the depth correction with negative value for a cylindrical chamber and a positive value for parallel plate chamber, diode or diamond detector.

Option 1: Depth correction

Depth correction is selected if a depth deviation in measurements due to the geometric characteristics of a detector should be corrected. The correction is based on the value of effective point of measurement, Peff:
- Select Depth correction.
- Select one or more beam types to which the correction will be applied. The default depth correction for the beam type and the class of this chamber are automatically displayed. They can be edited by entering a new value in the corresponding box.
- Enter a negative value for a cylindrical chamber and a positive value for a parallel plate chamber, diode or diamond detector.
For cylindrical chambers and electron and photon beams, the default values are calculated as:
- Electrons: Depth correction = -0.5*r (electrons),
- Photons: Depth correction = -0.6*r (photons),
where r is the radius of the cylindrical chamber.

By clicking the Default button, the value will be reset to the default value.

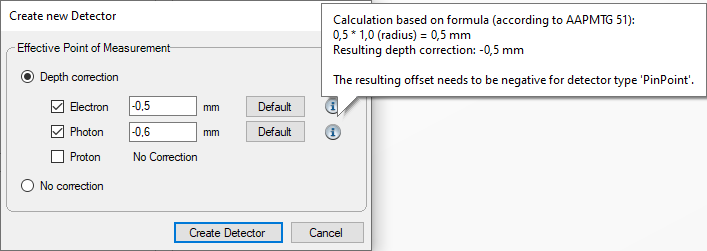

By placing the mouse on the Info button , the formula for calculating the correction value will be displayed. For other type of detectors and electron and photon beams, no formula available in the software.

For all detector types with protons, and diodes/diamond detectors with photons/electrons, the default value is set to 0. No formula in provided in the software.

Option 2: No correction

If no correction should be applied, select No correction.

Click Create Detector. The detector will be added to the Installed Detectors list. The information of depth correction due to Effective Point of Measurement will be displayed in the Effective Point of Measurement group on the right-side.
Edit the name of the detectors or delete detectors in the Installed Detectors list using the Edit and Delete buttons.
If needed, select a reference detector from the list in the Reference Detector field.

Voltages group (2)

The Voltage section provides a predefined Default Bias Voltage and a Maximum Bias Voltage according to the selection in the Installation. However, it can be edited any time. However, when performing controller setup, the default value will be taken automatically for the selected detector.

Calibration group (3)

Enter the calibration parameters of the detector from the calibration protocol or certificate. This entry is mandatory for absolute measurements but not for relative measurements.

Effective Point of Measurement group (4)

For editing the parameters here, see description of the Create new Detector - Effective Point of Measurement dialog under the section of Installation (1) above for instructions.

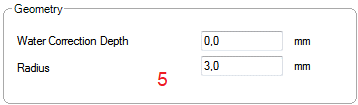

Geometry group (5)

Figure 1. Equipment Setup – Detectors – Geometry

The Geometry group is a supplement to the Depth correction defined under Effective Point of Measurement (see description above). The parameters in the Geometry group are automaticallyset to the default values if the detector is selected in the Templates and is used at gantry 0°. They need to be edited when the detector (including those in or not in the Templates) is used for measurements at gantry 90° or 270°.

Radius: Detector inner radius

Water Correction Depth: WET (Water Equivalent Thickness) of the wall thickness (1) plus the water distance between the inner wall and the detector top (2)

Parent topic: Setting up the Software
