After all necessary pre-conditions for the measurements have been fulfilled, a measurement can be performed. For the measurement, you need to have the Queue panel open as the central control window. If not already open, press the Queue button to open the panel.

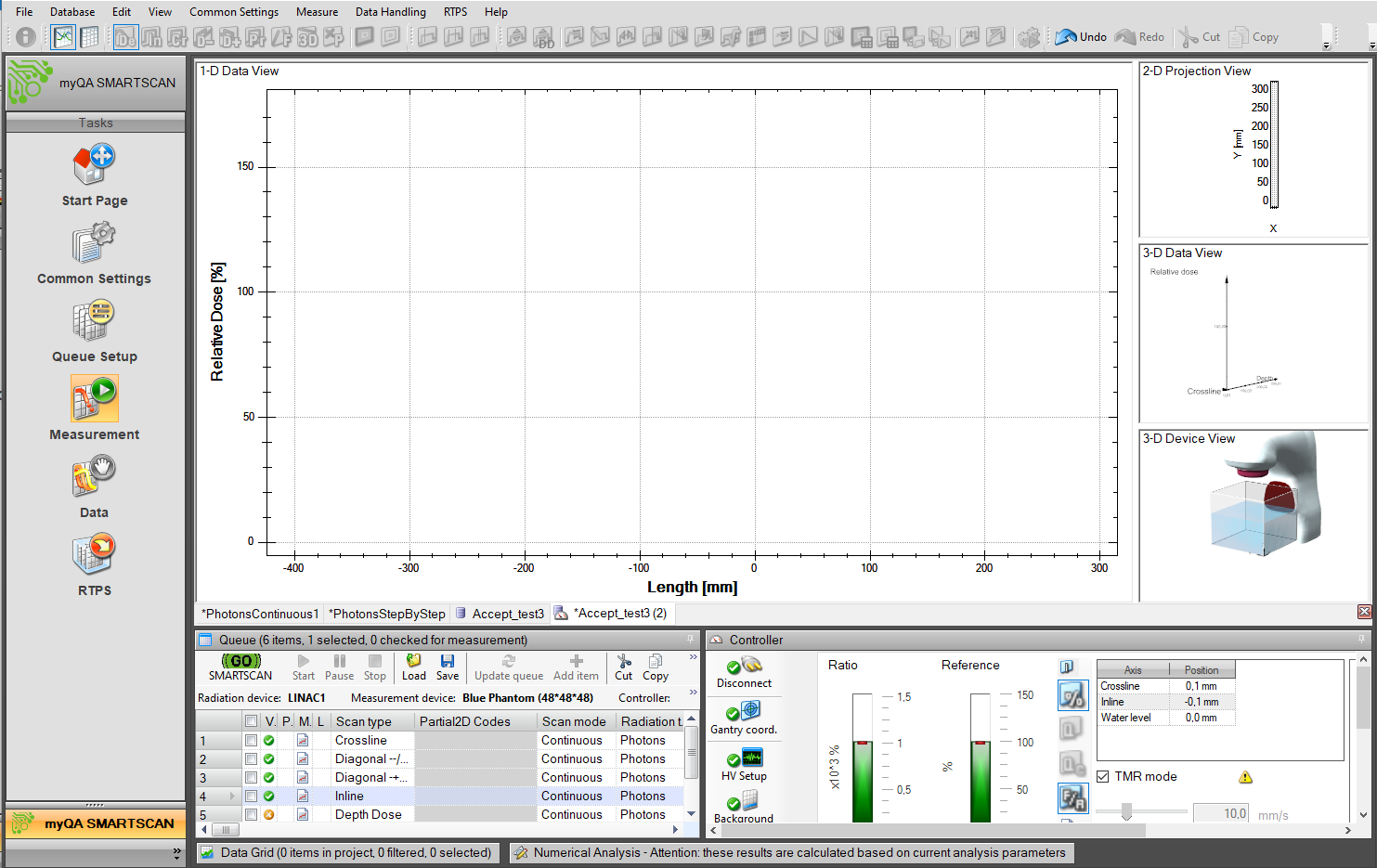

Following screen appears with Queue panel and Controller panel open.

Measurement window

Since the Start button in the Queue panel is still grayed out, just check either all queue items in the panel or single queues to be measured.

Now the Start button is enabled and measurements can be performed.

Measurement - Start

Switch on the Accelerator and press the Start button. The button bar switches to the status shown below:

Measurement – Pause / Stop

Pressing the Pause button during measurement, the movement pauses at current position. You can continue at the current position by pressing the Star button once more.

When pressing the Stop button, the current measurement will be stopped. Pressing the Start button will repeat the measurement once more.

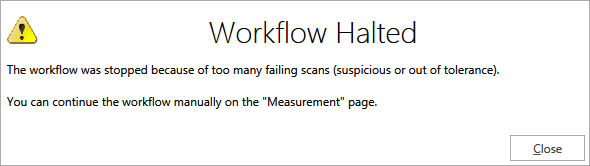

Measuring through the queue items, the status indicators will be displayed according to the measurement progress.

In the case below, all queue items are valid. The first one has been measured already and the second one is paused due to required change of field size at the accelerator. You will be prompted by the software to change the field size. After changing the field size, just press OK in the message window and the measurement continues automatically.

Measurement – status indicators





After all profiles measurements have been finished, a balloon message appears,

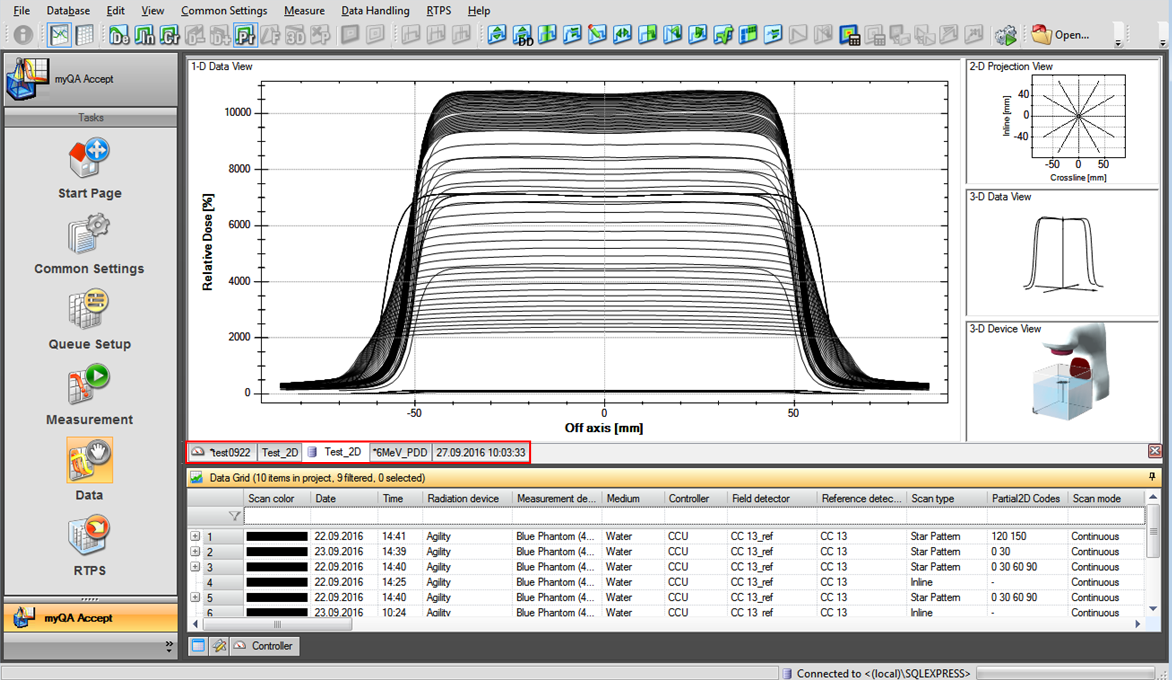

and a window like the one shown below is displayed, containing the measurements. Sometimes you may have different measurements in different projects, and then you can easily switch between the windows by selecting the corresponding tabs below the measurement window.

Profile Measurement – performed measurements
