Question
How can I maintain a 100% signal or ensure normalization to 100% during profile measurement?
Answer
We refer to this issue as 'drift in normalization,' and it can be resolved as follows
Step 1

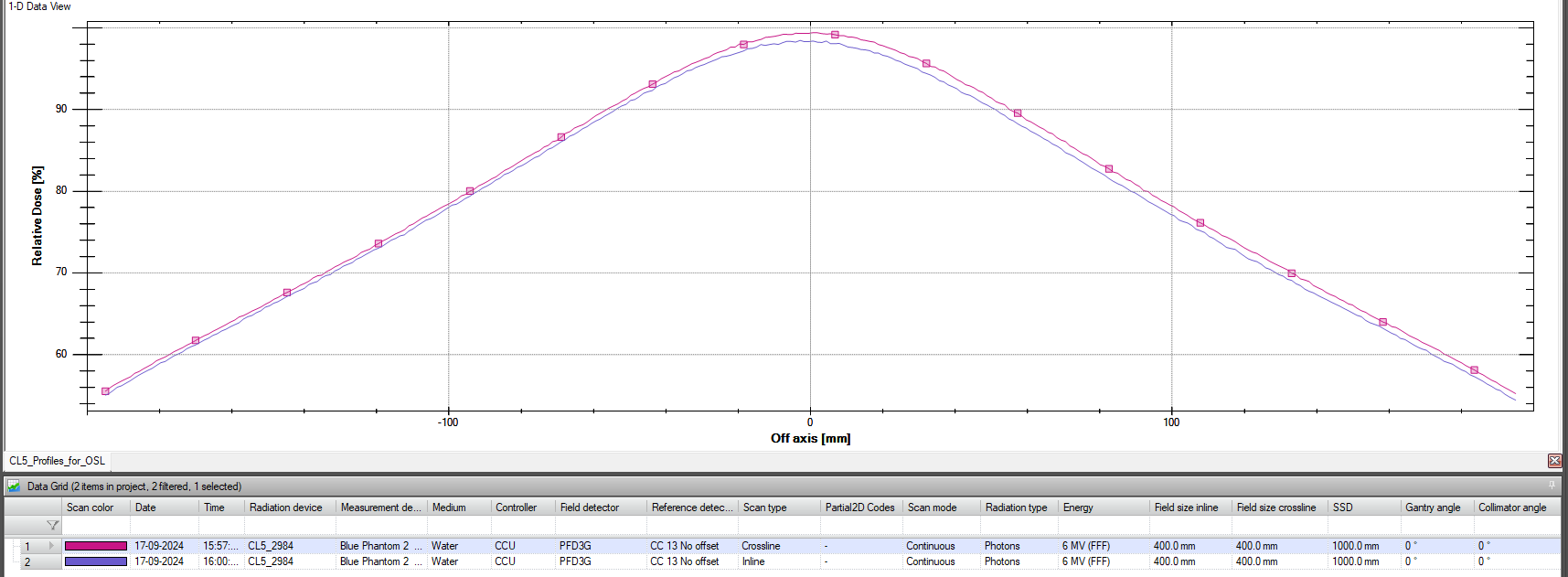

When measuring inline or crossline profiles, there can be a drift in normalization, as shown below:
This indicates that the profile is not normalized to 100%, even though normalization was performed at the measurement depth.
Step 2

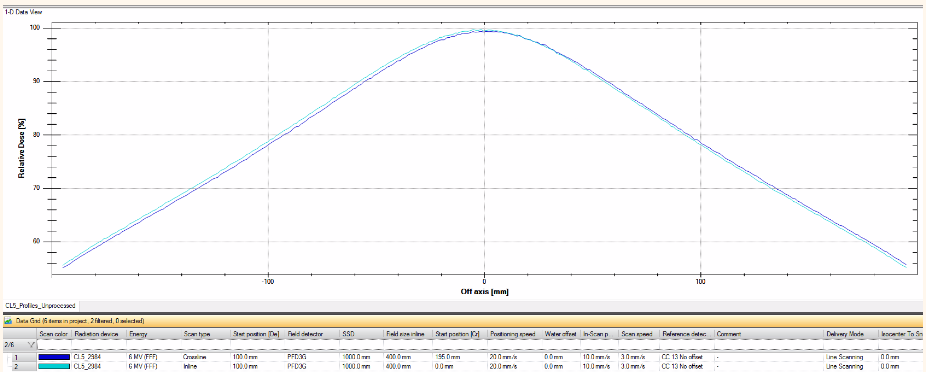

Please redo the normalization to bring the profile to 100%. After redoing the normalization, the profiles should once again be at 100%
