The Test Results page is opened by clicking the Test Results tab in the title area or clicking a task link on
the Dashboard page.
IMPORTANT NOTICE: DISPLAY IN THE TEST RESULT PAGE
Only test results from the latest executed task of an active protocol are displayed when the due date of the executed task was today.
Components Displayed in the Test Results Page
The Test Results page displays the tests of the selected task of a machine in the navigation (1)
myQA Cockpit - Test Results Page (example)
- Task navigation for selecting a task to be displayed (see Section 4.2)
- Machine and protocol of the selected task and tooltip about the operator and test time:
- QA test information display
- Status statistics of the selected task (see Section 4.3)
Task Navigation Panel
The Test Results page shows the test results of the task selected in the navigation panel. The navigation
panel provides four filters, which adhere to a selection hierarchy from top to bottom as how they are listed the navigation panel:
Task Navigation panel
The behavior of the Location filter is the same as in the Dashboard page (Chapter 3). For other filters, when a filter is not defined (no items are selected), it appears gray ( ). When a filter is defined, it changes to orange ().
Select Machine filter
It lists all machines that belong to the locations included in the Location filter. No more than one machine
can be selected at one time.
Select Task filter
It lists all tasks of the active protocol of the machine selected in the Select Machine filter. The tests of the
selected task will be displayed in the content area in category groups.
Approver filter
Enter an approver name (or parts of it) in the text box to filter by the approver name. If the Approver filter is defined without defining the Select Tasks filter, you may need to define the Select Tasks filter afterwards since one approver can approve more than one task.
Filters can be expanded or collapsed. The expanded Select Machine and Select Task filters show the available machines or tasks and their status. See Section 3.1.1 (for machines) and Section 3.1.2 (for tasks) for the description of the status symbols.

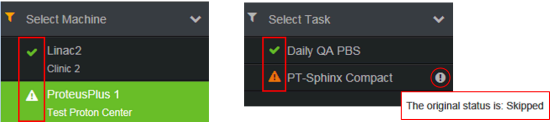

Expanded filter examples: Select Machine or Select Task
If a status of a task was overwritten in myQA Machines, an info icon appears. Hovering over it will display the original status.
The defined filters will be restored when reloading the page or switching to a different page and returning to the Test Results page. After the session is closed the filters will be reset.

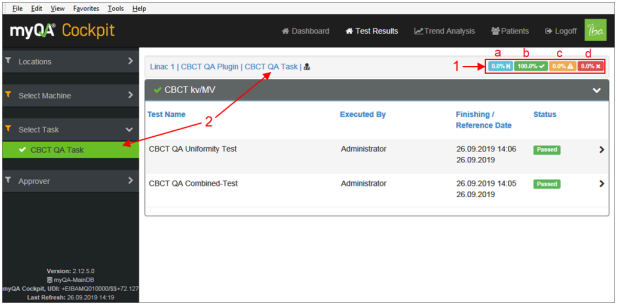

Status Statistics of the Selected Task
For each task in a protocol for a specific machine, the percentages of the number of tests passed, failed, skipped, or had a warning over the total number of tests in the task are displayed on the top right for the last execution:
1: Task statistics [Percentage of skipped (a), passed (b), warning (c), failed tests (d)], 2: Selected task
Information of Tests

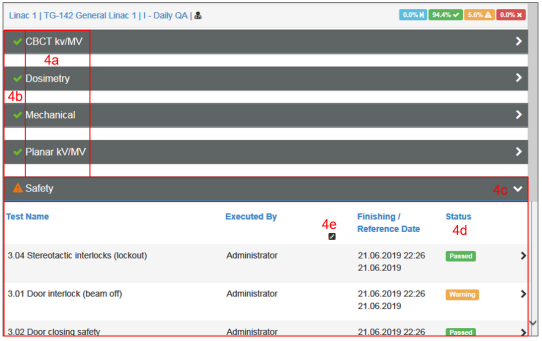

Status of a Test Category
The categories of tests are always displayed (4a). The overall status of a category is also indicated by a symbol to the left of the category name (4b). It is calculated based on the status of the last executed tests
in this category and the rules (see below for a description of the status symbols):
: "Passed" – if there is at least one test passed and no warning/failed tests
: "Failed" – if there is at least one failed test
: "Warning" – if there is at least one test warning and no failed tests
: "Skipped" – if there is at least one test skipped and no passed/warning/failed tests
Expanded View of a Category
The tests of a category can be expanded/collapsed by clicking the row of the category (4c). The test
category of a test is defined in myQA Machines whenever a new protocol is created.
By default, if there is at least one failed test in a task, the test(s) are expanded when selecting this task in
the navigation panel, otherwise the tests are collapsed.
When a test category is expanded, the tests are shown with test name (Test Name), operator (Executed
by), finishing date and reference date (Finishing/ Reference Date), and test results (Status). The Finishing
Date is the time when the task was finished. The Reference Date is set in the myQA Machines > Test Run
page and refers to the actual date of the measurement.

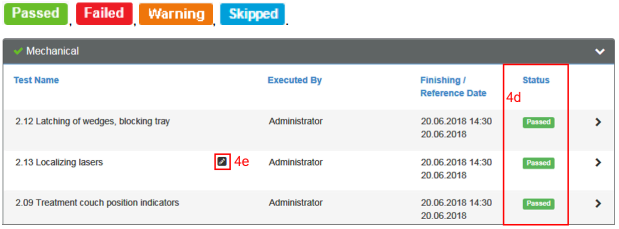

A test result, directly taken from the myQA Machines, has one of the following statuses, shown in the
Status column (4d):
Displaying a Test Note
If a test note is entered during the test run in the myQA Machines workspace, the Test Note Icon (4e)
will appear next to the executor in the expanded view. The tooltip will display the note when hovering the
cursor over the icon.

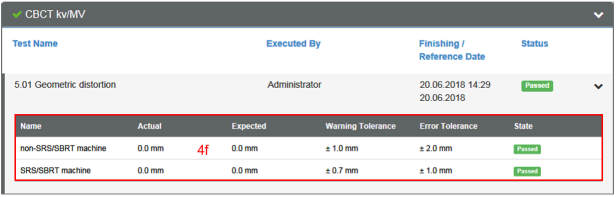

Detailed View of a Test
The detailed information of a test can be viewed by clicking on the row of a test (4f). Once the test is
expanded, it can be collapsed by clicking the test row again.
Beside the status of a test, the expected/reference and actual values, and warning and fail limits are displayed.

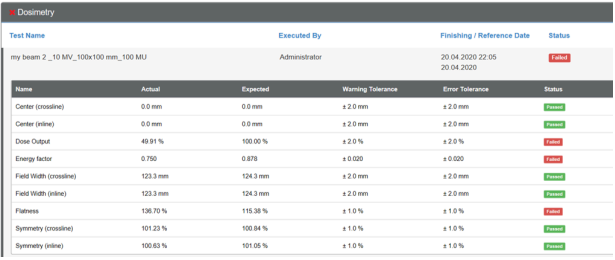

For the myQA daily test results, the parameters of centers, symmetries and field widths of inline and
crossline profiles, dose output, energy factor, and flatness are displayed. These parameters are also shown
as separate trends in the Trend Analysis page.

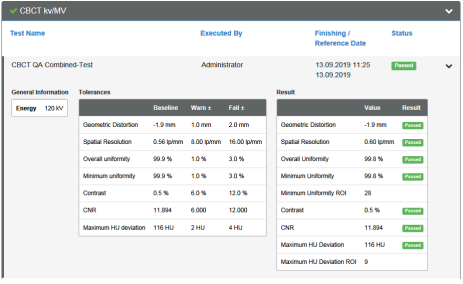

For the imaging plugin tests (i.e., CBCT, EPID, MLC, and VMAT QA Plugins), the detailed view includes General Information, Tolerances, and Result sections. See a combined test of CBCT QA below:
