The Patients view provides a complete status overview of treatment plan verifications performed in the
myQA Patients workspace.

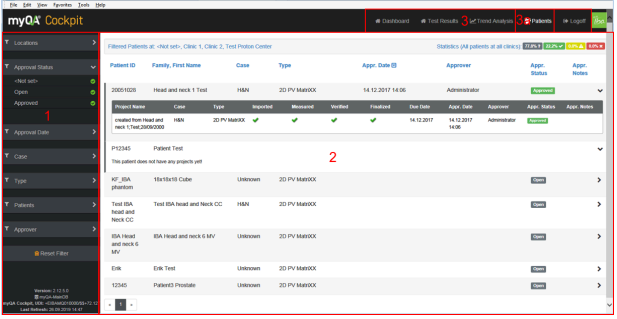

The Patients QA page contains a navigation panel (1) and a patient QA table (2) that shows information
about all patients with assigned treatment plans. In addition, the system shows overall statistics of all patient related plans (3).
The Patients QA view is accessed by clicking the Patients button on the top navigation area (3a).
Navigation Panel and Filters for Display
Initially, all patients of clinics assigned to the user are displayed (see Section 2.2.1 myQA Patients Instrucitons for Use). myQA Cockpit will persist any filters set on the patients list, i.e., on subsequent page
views the last used filter will be set again.
The Navigation (1) panel contains the filters for selective display. Click the filter title area to show or hide
the filter contents.
Locations, Approval Status, Case, and Type filters: all corresponding items available for the specific user
are listed. Click once on the item to select or de-select it.
Approval Date filter: enter the range of the dates for display.
Patients and Approver filters: free-text filters. By entering the complete or partial name / ID of a patient (for
Patient filter) or name of the approver (for Approver filter), only the patients whose name / ID (when using
Patient filter) or approver’s name containing the entered text will be displayed.
When a filter is not defined, it is shown as gray (A). When a filter is defined, it changes to orange (
).
Clicking S will set all defined filters to un-defined, i.e., all patients are displayed.
Statistics of Plan Status of all Patients
The clinic sites selected to be displayed are shown on the left of the top bar. However, on the right-side, the overall status is shown for all patient related projects.
The status is shown as percentages:
- gray - projects with no approval state
- green - percentage for projects with Approved status
- yellow - percentage for projects with Needs R. (Revision) status
- red - percentage for projects with Declined status
Patient QA Table
Listed items in the Patient QA table
The patient QA table has the following list columns that show the data from the latest updated project of a patient:
- Patient ID - patient’s identification number
- Family, First Name - patient’s family name first name
- Case - project study case
- Type - verification type and measurement device
- Appr. Date - approval date
- Approver - approver’s name
- Appr. Status - status symbol with status text
The Status of the newest project is shown with a colored symbol containing the status text:,
,
(Needs Revision),
- Appr. Notes (note symbol appears if a comment was entered in the Approval dialog in the Verification Compare page of myQA Patients).
The note is shown on "mouse-over". On mobile devices, the note is shown on tapping.
The table displays 15 patients per page. If there are more than 15 patients, click the page navigation,, to navigate to different pages.
Sorting the Display Order
By left-clicking a column name area, the Sorted-up or Sorted-down icon for this column appears.
Once the Sorted-up or Sorted-down icon appears, the display order of this column can be sorted reversely by left-clicking the column name area. The rest of the columns are sorted accordingly.
Patient’s project overview
By clicking the row of a patient, all projects for this patient will be displayed. Once the patient is expanded, it can be collapsed by clicking the row of the patient again.
Compared to the patient QA table, five more columns are shown in the patient’s all project view:
- Imported
- Measured
- Verified
- Finalized
==> The steps in the Workflow Status indicator in the myQA Patients workspace. The green checkmark indicates that this step was set as finished.
- Due Date - project due date
