How to Connect multiple Digitizers to a single host via Wi-Fi and USB

Setup:

1. Connect a digitizer and sensor to the PC using the supplied USB cable and launch Accu-
   Gold2 using the desktop shortcut.

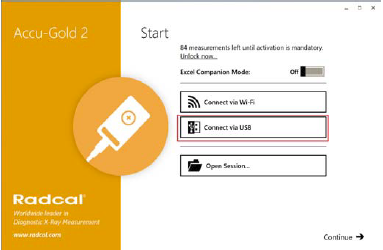

2. Select “Connect via USB” and allow the
   hardware to initialize.

3. When “Ready” you connect to the Nugget or Touch Wi-Fi using the windows connections
manager.

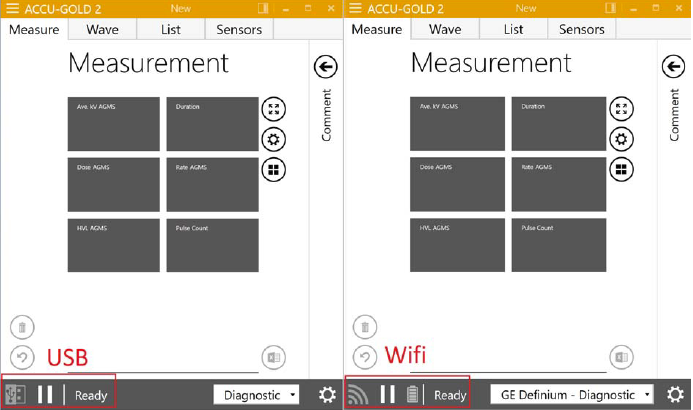

4. You will now have 2 Accu-Gold application windows on screen. Resize/position as needed.

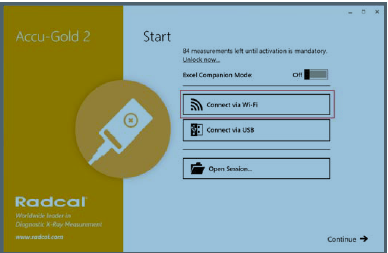

5. Select “Connect via Wi-fi”and allow the
hardware to initialize.

Both systems should now be in the “Ready” state awaiting a signal.

Measuring and sending to Excel:

1. With the hardware in the “Ready” state activate companion mode on all running Accu-Gold 2
   application windows. MS Excel will automatically open and resize-the window.
2. Select the first column and row on the excel sheet that you would like to send data to.

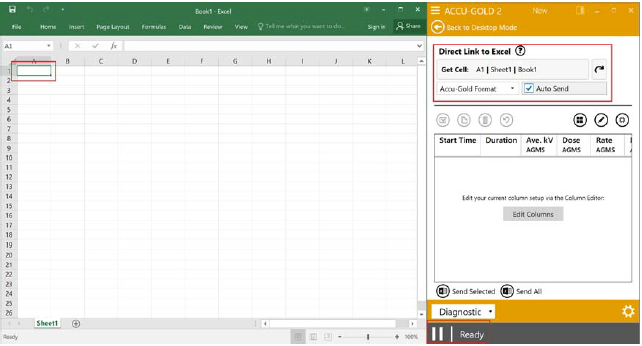

3. On Accu-Gold 2 under the Direct Link to Excel options click “Get Cell”. The name of the
sheet, workbook, and cell will automatically show in the same field. Check the “Auto-Send”
Box.

4. You can now go back to the excel sheet and select the first row and column that you would
like to send data to from the second set of hardware.

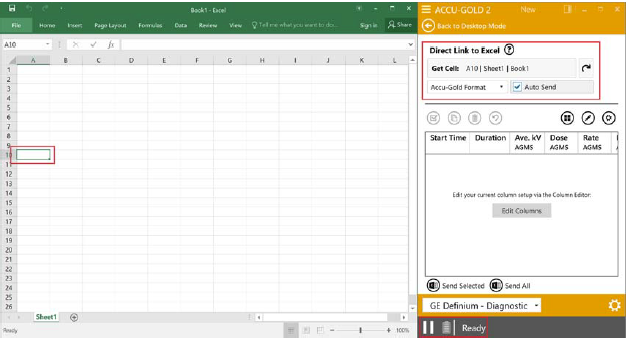

5. On Accu-Gold 2 under the Direct Link to Excel options click “Get Cell”. The name of the
sheet, workbook, and cell will automatically show in the same field. Check the “Auto-Send”
Box.

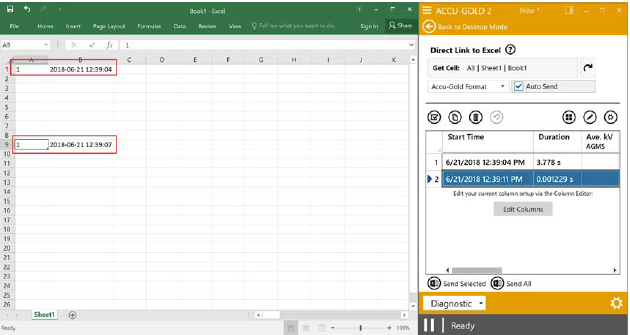

You can now irradiate and see the data automatically populate the excel sheet from multiple
hardware sets simultaneously.

Repeat the process to add more hardware (5 Digitizers max: 4USB / 1Wifi) Performance may
vary based on the PC’s computing power. Use of Core I5/equivalent or better with 8GB Ram and
Sata SSD is recommended.
