Battery Connection
charge method
level
Level
Charging
Error

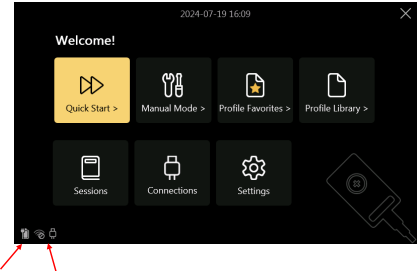

If you attach the sensor before you start, the software will go straight to measuring* (see previous page).
Otherwise, click on Quick-Start to start.
*This can be overridden in the Settings menu: “Auto-Start Measurement”
If the choices made by Quick-Start are not appropriate** for the measurements you are making, choose Manual Mode or select a profile from the Profile Library.
If you are continuing a previous session, choose Sessions.
**Quick-Start will look to see what sensors are attached and will automatically choose the appropriate profile.
Note: when using the DM sensor, it will choose the W-Al diagnostic calibration as the default. If you are making Mammo measurements, you will have to choose the appropriate A-F manually.
