| Calibration Standard | Factory calibrated, all output parameters traceable to National Bureau of Standards |
| Electrical Rating (maximum peak voltages) |
Anode to cathode: 150 kVp Anode to ground: 85 kVp Cathode to ground: 85 kVp |
| Current from x-ray to Generator (max) |
Anode (peak): 1 A for 1 s Anode (continuous): 700 mA Filament: 10 amps (ac rms) |
| D.C. Voltage Division Ration | 10,000: 1 ±1% (10kV to 75 kV plus & minus polarity) |
| Voltage Divider Load |
1000 megohms to ground 2000 megohms anode-cathode |
| Duty Cycle | Continuous |
| Frequency Response |
Voltage: 0-1 kHz ± 2.9% 1 kHz – 100 kHz ±12.2% Anode current: 4 kHz @ -3-dB Filament current: 20 Hz to 20 kHz, ±1db |
| Filament Current Sensor |
Output level: 0.1 volt per ampere (p-p) Ratio: 0.1 volt/ampere (±5% + zero offset) Noise level: 0.1 ampere, rms |
| Anode Current Sensor |
Current rating: 1 A Insertion impedance: 42 ohms ± 5% Power rating: 21 watts Ratio: 1 millivolt/milliampere, (Rad Range) 20 millivolts/milliampere (Fluoro Range) Accuracy: 1 mA to 1 A, ±0.2% or ±100 μA whichever is larger Noise level: 0.1 mV (p-p) (Max) |
| Gas Volume |
0.5 cubic foot |
| Pressure Gauge |
0-30 psig scale |
| Insulation |
Sulfur Hexafluoride gas (SF6) @ 25-30 psig |
| Gas Relief Valve | 32 psig |
| Gas Filling Valve | Schrader type, spring loaded |
| Test Level Connectors |
Scope inputs: 5-BNC type, insulated Accu-Dyn+ computer interface: USB-2.0 mini-B Digital display: 1-Bendix PT02A-16-8P |
| High Voltage Receptacles 3-conductor cables |
High Voltage Receptacles 3-conductor cables |
| Coaxial Cable |
Two 12-foot long cables RG-58/U with BNC connectors |
| Temperature |
Operating: +15° to +30°C Storage: - 10° to + 50°C |
| Dimensions |
See Outline Data |
| Weight |
32 lbs (14 kg) |
| Power Requirements |
85-264 V, rms 47-440 Hz |
| Fuse |
500mA SLO-BLO |
With Accu-Dyn+ Display System
| kV Accuracy | ± 1% | 10-150 kV, DC to 4.5 kHz |
| Anode Current | ± 0.2% | 0.1 mA-1 A, DC to 2.3 kHz |
| Exposure Time | ± 0.5 ms |
*Anode+Cathode
Waveforms and calculated kV values reflect a bandwidth of 4.5 kHz

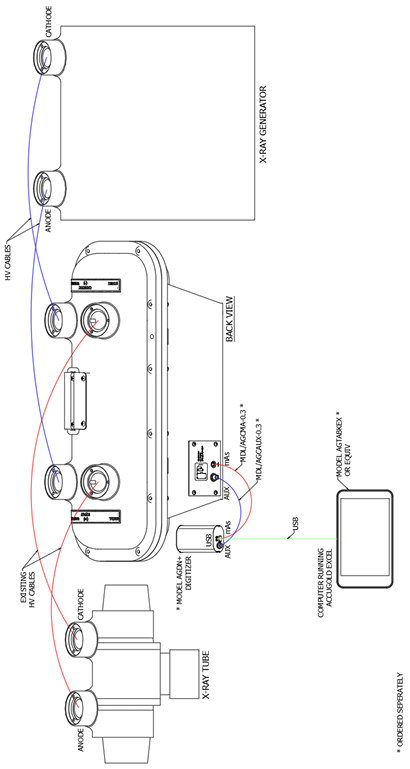

Figure 1: Cabling Data

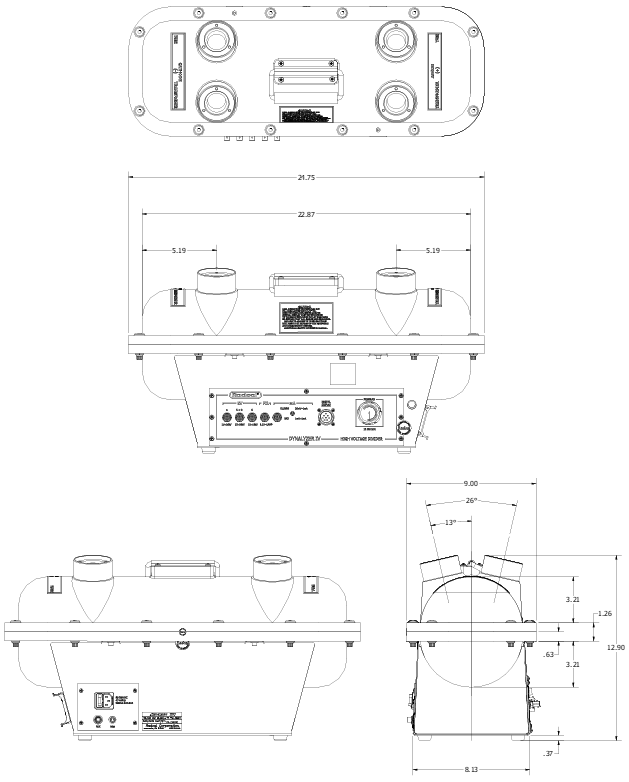

Figure 2: Outline Data (dimensions in inches)
