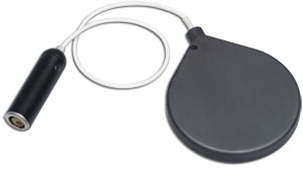

For use with Accu-Gold, Accu-Pro, and Accu-Dose, the 10X6-60 is a service and image intensifier chamber. The dynamic range and thin profile is ideal for input dose at the image intensifier, high dose rates encountered in Fluoroscopy and Cine, spot film devices, and other special procedures.
| Chamber | 10X6-60 | |
| Min Rate | 200 µR/s | 2.0 nGy/s |
| Max Dose | 2 R/s | 19 mGy/s |
| Min Dose | 1 µR | 10 nGy |
| Max Dose | 5.9 kR | 52 Gy |
| Cine Specifications | 0.01 µR/f ->100 mR/f | 0.1 nGy/f ->1.0 mGy/f |
| Calibration Accuracy | ±4% using X-rays @ 150kVp and 10.2 mm AL HVL | |
| Exposure Rate Dependence | ±5%, 2 mR/min to 199 R/min | |
| Energy Dependence | ±5% 20 keV to 1.33 MeV (with build-up material) | |
| Construction | Polycarbonate walls; conductive graphite exterior coating; 60 cm3 active volume, 0.5 m low-noise triax cable; 0.13kg | |
