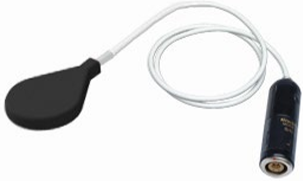

This 10cc multi-purpose ion chamber is suitable for measuring R&F as well fluoro. It’s small size (5cm diameter x 1cm thick), excellent energy response and x-ray transparency makes it ideal for those difficult measurements where space is at a minimum.
| Chamber | 10X6-10 | |
| Min Rate | 2 µR/s | 20 nGy/s |
| Max Rate | 17 R/s | 17 R/s |
| Min Dose | 10 µR | 100 nGy |
| Max Dose | 59 kR | 516 Gy |
| Cine Specifications | 0.1 µR/f ->1 R/f | 1 nGy/f ->10 mGy/f |
| Calibration Accuracy | ±5% using X-rays @ 150kVp and 10.2 mm AL HVL | |
| Exposure Rate Dependence | ±5%, 0.4 mR/s to 80 R/s, up to 500 R/s for 50 us pulses | |
| Energy Dependence | ±5%, 1.5 mm Al to 15 mm Al hvl | |
| Construction | Polycarbonate walls and electrode; conductive graphite exterior coating; 10.3 cm³ active volume; 1.5 m low noise triax cable; 0.05kg | |
