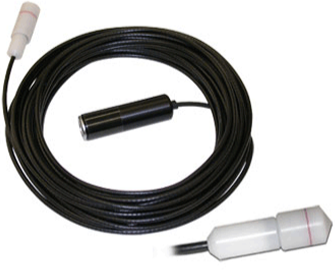

For use with Accu-Gold, Accu-Pro, and Accu-Dose, the 10X6-0.18 is a high dose rate chamber used for in-beam measurements of high-intensity gamma radiation. The fully guarded chamber is mounted at the end of a 3-m low-noise triax cable.
| Chamber | 10X6-0.18 | |
| Min Rate | 50 µR/s | 500 nGy/s |
| Max Rate | 720 R/s | 6.31 Gy/s |
| Min Dose | 200 µR | 2 µGy |
| Max Dose | 2 MR | 17 kGy |
| Cine Specifications | N/A | |
| Calibration Accuracy | ±4% @ 60 Co | |
| Exposure Rate Dependence | ±2%, 3 mR/s to 720 R/s | |
| Energy Dependence | ±5%, 45 keV to 1.33 MeV | |
| Active Length | 8.1 mm ± 1 mm | |
| Construction | C552 air-equivalent material walls and electrode; polyacetal exterior cap, 0.18 cm³ active volume, 3-m triax cable Calibrations at 60Co and 137Cs are available. | |
