Overview

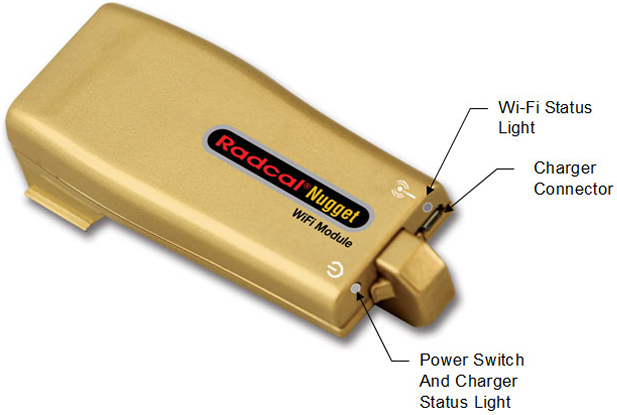

The Accu-Gold Nugget provides a wireless connection between the Accu-Gold measurement system and the display device or computer. It contains a micro computer that relays information via Wi-Fi to the desktop or tablet running the Accu-Gold software. It uses a built-in Lithium-ion polymer battery with battery management circuitry that maintains the life of the battery by carefully controlling the charging while monitoring its temperature and voltage.
Package contents
| Radcal Part Number | |
| Accu-Gold Nugget | MDL/AGNUGGET |
| Charger (5V, 1.8A) PRS/PSAC09R-050 | PRS/PSA10F-050 |
|
AC power supply blades (US) or AC power supply blades (international kit) |
(built in) PRS/PSA10F-Q(D) |
|
Flash drive with the latest Accu-Gold software |
MDL/AG2SW |
| Flash Drive adapter, USB A female to mini USB B female | CBL/USB-AF2MBF |
System Requirements
Operating system - Windows 7, 8, 10 (Windows XP not supported)
Accu-Gold V2 or greater software required (Version 1 is not supported).
(Note: Accu-Gold Excel and Accu-Gold Excel Templates are not supported)
| Power Switch Status | Meaning |
| Solid Green | Power On |
| Blinking Green | Low Battery (~25% remaining) |
| Blinking Yellow | Battery Charging |
| Solid Yellow | Battery Charging |
| Long on-off pause (4 sec) | Battery Charging |
| Wi-Fi Status | Meaning |
| Orange | Red |
| Blinking Green | Red |
| Red | Red |
Additional indications:
Fast blinking orange is used to indicate firmware update has been completed.
