Turn off the Nugget.
NOTE: If the battery is exhausted, charge it for at least ten minutes before attempting a firmware update.
Required Equipment: DO NOT SUBSTITUTE!
PRS/PSAC09R-050 CHARGER, 5VDC, 1.8A USB MICRO
CBL/USB-AF2MBF ADAPTER, USB A FEM TO MINI B FEM
Flash drive with new Nugget firmware

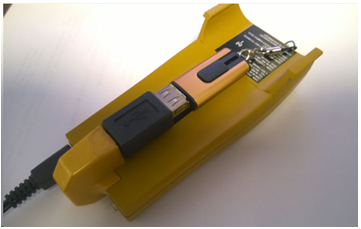

Assemble as shown:

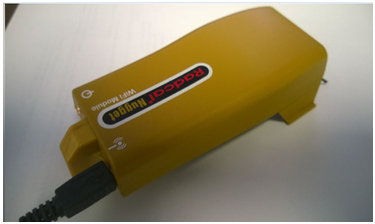

Flip it over and observe the WiFi light.
Press the power-on button of the Nugget. The Wi-Fi light will come on GRN then ORN. When it starts blinking orange quickly, the update is complete. Unplug the flash drive, press the Nugget power button to turn it off and then back on again. It is now ready to use.
