Manual Lift Table
The manual lift table Type 3023 is a small and flexible device for transport, positioning and fine adjustment of water phantoms under linear accelerators or other radiation sources. It is provided with a leveling device with three resting points incorporated into the positioning table.
The substantial technical advantages of the lift table are as follows:
- The crank handle uses a mitre-gear with a reduction ratio of 1:2 and allows the lifting of water phantoms with little effort.
- The construction of the drive includes four synchronized acme thread spindles connected with a precision driving belt. The spindles are self-locking, a given position rests absolutely stable.
- By using the leveling frame mounted on top of the lift table, the water phantom can be fine adjusted in vertical direction.
- For transport of the water phantom the lift table is provided with two fixed and two steerable rollers with parking brakes.

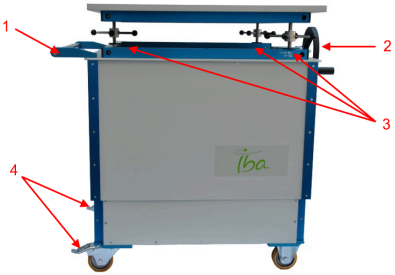

Manual lift table Type 3023; 1: Handle for moving the table, 2: Hand wheel for vertical movement of the
platform, 3: Handles for horizontal leveling, 4: Wheel locks
Electrical Lift Table
The electrical lift table Type 4115 or 4230 is a flexible device for positioning and fine adjustment of water phantoms under linear accelerators or other radiation sources.
- The electrical control allows comfortable and smooth lifting / lowering with a vertical range of 660+15mm – 1180-15mm; the table is therefore suitable for measurements in both standard SSD and TPR/TMR conditions.
- The telescope construction is self-locking; the platform rests stably at a given position.
- By using the leveling frame mounted on top of the lift table, the water phantom can be fine adjusted in vertical and horizontal direction. In the horizontal plane, it can be shifted in two directions and turned.
- The lift table is equipped with two fixed and two steerable rollers with parking brakes
Electrical lift table Type 4115 / 4230; 1: Platform, 2: Knobs for horizontal adjustment, 3: Transportation
handle, 4: Hand wheel for vertical adjustment, 5: Power cord and hand control pocket, 6: Accessory drawer, 7: Protection foam for side standing, 8: CCU cabinet, 9: Wheel brakes
Hand control
Up button
By pressing and holding this key, the list table moves upwards
Down button
By pressing and holding this key, the lift table moves downwards
If the keys are released, the movement will stop immediately
CAUTION: CAUTION WHEN USING THE BUTTONS
When pressing the buttons of the hand control to move the phantom, the operator must be aware of the device clearance. Release the button to stop the movement of the lift table if there is an obstruction.
