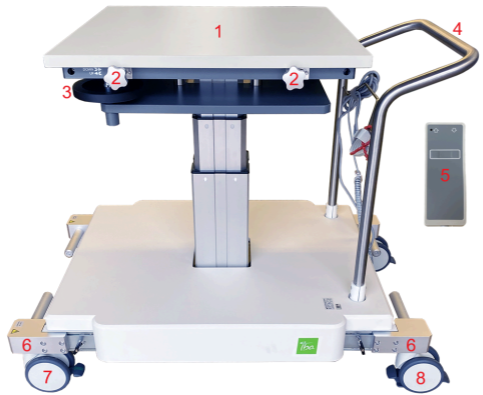

Electrical Lift Table
The electrical lift table is a flexible device for positioning and fine adjustment of water phantoms under
linear accelerators or other radiation sources.
- The electrical control allows comfortable and smooth lifting / lowering with a vertical range of 660
mm – 1180 mm; the table is therefore suitable for measurements in both standard SSD and TPR/TMR conditions. - The telescope construction is self-locking; the platform rests stably at a given position.
- By using the leveling frame mounted on top of the lift table, the water phantom can be fine adjusted in vertical and horizontal direction. In the horizontal plane, it can be shifted in two directions and turned.
- Extendable legs for better stability of the water phantom on the table. The two rear wheels can be braked or locked at any direction and the two front wheels can be locked at the forward direction.
CAUTION: LOCK THE DIRECTION DURING TRANSPORTATION
To prevent unintentional rotation of the device during transporting on the inclined floor, lock the direction of the front wheels of the electrical lift table before moving the device.
5a: Up button
By pressing and holding this key, the list table moves upwards
5b: Down button
By pressing and holding this key, the lift table moves downwards
If the buttons are released, the movement will stop immediately
CAUTION: CAUTION WHEN USING THE BUTTONS
When pressing the buttons of the hand control to move the phantom, the operator must be aware of the device clearance. Release the button to stop the movement of the lift table if there is an obstruction.
