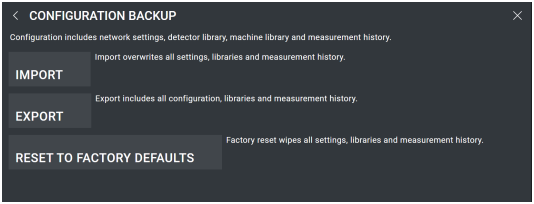

The Configuration Backup page allows the user to Import previously saved configuration data, Export the current device configuration, or Reset the device to the factory default.
Import
- To import the previously saved configuration data, first plug in the USB flash drive or connect to the remote PC with the correct file.
- Tap the IMPORT button. The IMPORT DEVICE CONFIGURATION page opens.
- If a flash drive is connected, navigate to the correct file and select it.
- If the device is connected to a PC, click the BROWSE button to select the correct file.
- Tap the UPLOAD button.
- Confirm the upload by tapping YES.
Export
- Before exporting the configuration data, please ensure that a USB flash drive is plugged into the device, or the device is connect to a remote PC.
- To create a backup of device settings, detector and machine libraries, and measurement history, tap the EXPORT button.
The Export device configuration dialog opens. - Tap the EXPORT button to export the configuration data.
- Save the file on the connected flash drive or PC.
Reset to Factory Default
- To restore the device to the factory default, click the RESET TO FACTORY DEFAULTS button.
- The Reset device to factory defaults? dialog opens. Click YES to confirm.
- All configuration data set by the user, including device and machine libraries, and measurement history, will be erased and the factory defaults will be restored.
