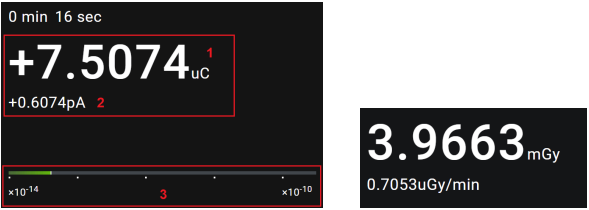

The display on the main screen provides two elements showing the measurement value:
- The larger number (1) shows the absolute charge or dose value (depending on the measurement type).
- The smaller number (2) shows the average electric current or dose (depending on the measurement type).
Please note, the current displayed after a measurement is finished is integrated charge to total
measurement time. For Manual and Trigger modes, the measurement time displayed is rounded to the nearest second.
During a measurement:
- A sliding average of current / dose rate is displayed (2) and after the measurement the average over the complete measurement is shown
- The measurement value is refreshed every 0.5 seconds.
Charge measurement Dose measurement
Range Bar
The logarithmically scaled bargraph (3) below the main display can be used to quickly assess whether
the input current from the connected detector is within the effective input current range of the DOSE-X
electrometer input. It is refreshed every 200 ms, independent from a running measurement, and shows the peak value of the input current.
The bar will change color when the current measurement value gets closer to the maximum boundary of
the current sensitivity:
- Blue: Indicates that the input current from the detector is below the rated minimum value for the
selected range. - Green: < 80% of maximum value. This indicates that the desirable range for the detector has been selected.
- Yellow: ≥ 80% and < 95% of maximum value. It is recommended to choose a lower sensitivity as further increases of the current may exceed the rated range of the chosen sensitivity.'
- Red: ≥ 95% of maximum value. This indicates an imminent overrange condition. Once the input current reaches the maximum rated value, a warning symbol
will be shown. The symbol will be visible for five seconds.
Measurement History

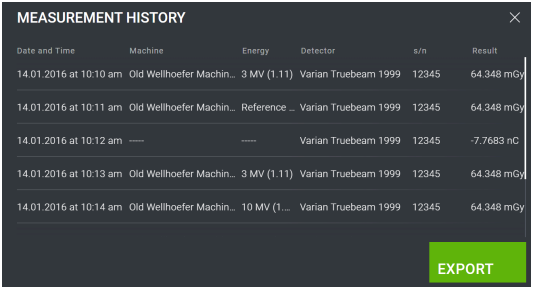

Tap on the Measurement History icon to view the measurement history. The list is displayed in
chronological order, starting with the most recent measurement.
Tap on a measurement from the list to see detailed information about the selected measurement.
