IMPORTANT NOTICE: USE THE SIDE MARKERS FOR POSITIONING
When using build-up plates or an energy verification plate on the device, it is convenient to use the side markers on the device or miniPhantom and room laser for the alignment.
- Place the Energy Verification plate on the MatriXX Resolution with the same orientation as the detector and align the three edges to the corresponding lines on the MatriXX Resolution chamber:

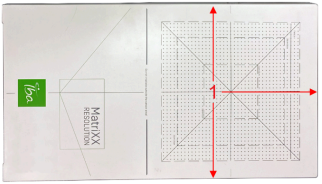

MatriXX Resolution; 1: Three edges to be aligned to the edges of the build-up plate
Note: Electron energy Verification for 4 MeV is not feasible.
