myQA Blue Phantom3 - Setting up the myQA CCU-X

Setting up a Network Connection

• When used in wireless mode (standard operations) the CCU-X provides wireless networking according to IEEE-802.11 for standard operations (Section 5.4.3.2). The Wireless IP Address and the Wireless MAC Address can be found on the Device Info page of the web interface.
• When used in wired mode (optional) the CCU-X provides 10/100/100 MBit wired networking according to IEEE-802.3 (Section 5.4.3.3). The Ethernet IP Address and the Ethernet MAC Address can be found on the Device Info page of the web interface.
• If the device is connected to a network without a DHCP-Server, no static IP-Address is configured. A linklocal address (LLADR) from the 169.254.xx.yy Pool is used (Subnet mask 255.255.0.0). The first address to try is 169.254.22.11

• Ports necessary for full functionality of CCU-X

  • TCP: 1222, 1227, 51233 (inbound/outbound)
  • UDP: 1221 (inbound/outbound)

  Dynamic TCP range 49152-65535
  Alternative: Allow complete app through the firewall

Logging in to CCU-X – Web-browser

By default, the hostname of CCU-X is “ccux-[S/N]”. The device serial number (S/N) is a 5-digit number and can be found on the device information label on bottom of the device. This label also contains two URLs for initial configuration http://matrixx-[S/N].local/ or http://169.254.22.11/.

Note: If the device is connected to a network without a DHCP-Server, no static IP-Address is configured. A link-local address (LLADR) from the 169.254.xx.yy Pool is used (Subnetmask 255.255.0.0). The first address to try is 169.254.22.11.

• Connect the device to the PC with an Ethernet cable.




• Switch on the device and wait until the power button LED lights green.
• Short press (<1 s) the Config button on the device. The Activity LED starts to blink.

• There are three options to open configuration web interface:

  • a. Recommended: via URL https://169.254.22.11/ (valid if the device is connected to the PC with a direct cable connection or if no DHCP server exists on the local network).
  • b. via URL https://matrixxair-[s/n].local/ ([s/n] to be replaced by the device serial number; fixed IP address - same network mask)
  • c. via Windows Explorer
    Click to expand the Network browser, and then double-click the device name.



  Note: If the device name cannot be found, check whether the Windows Network Discovery is enabled.

• The LOGIN dialog of the configuration web-interface opens:

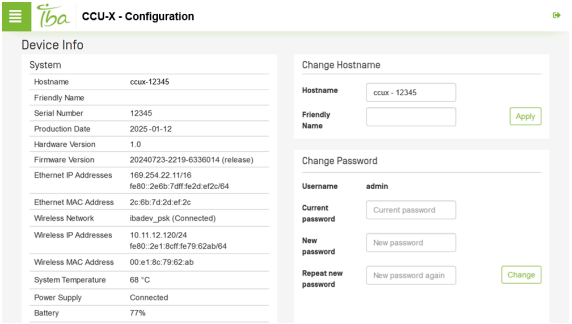

• Enter the user name (admin) and password, and click LOGIN. The Device Info page opens.
  CAUTION: DEVICE SPECIFIC PASSWORD IS PROVIDED
  BY IBA The device specific password is shipped in a sealed envelope. In case the device is delivered with and already opened envelope, the device might be compromised. Do not connect it to your network or use it and reach out to the IBA Service (Section 15.1).



• The hostname (or device name) and friendly name can be updated in the Change Hostname section.

  Note: If the hostname is changed, the new hostname is taken into account only after restarting the device (powered off and back powered on).

• Click the Apply button after entering the new information.

• It is recommended to change the provided password after the first login. Go to the Change password section the update the password.

  IMPORTANT NOTICE CHANGE PASSWORD AFTER FIRST LOGIN
  For security reasons, change the password after the first login to the web-interface.

• Click the Change button after entering the new information.

• Click the Navigation icon (1) in the upper-left corner to expand the Navigation panel:



• Different pages can be accessed by clicking the page name on the Navigation panel for different configuration tasks.
• Click Licenses is to see the open source licenses (see Section 12.3 in the myQA Accept Instructions for Use).

Configuration of Wireless Communication

When used in wireless mode (standard operations) the CCU-X provides wireless networking according to IEEE-802.11 for standard operations. The Wireless IP Address and the Wireless MAC Address can be found on the Device Info page of the web interface.

• Click Configure Wireless in the Navigation panel to open the page.
• Section Available WLANs lists the WLANs in the range of the device. Select the WLAN to be used.

• Enter the authentication information for the WLAN in the Connect section and then click the Connect button.

• In the WLAN IPv4 and WLAN IPv6 sections, the current WLAN IP settings and the connection status are displayed.

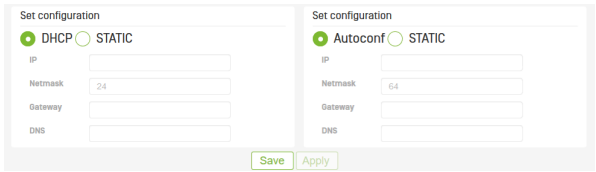

• In the Set configuration group, select the DHCP (selected by default) or STATIC round button for the IP address configuration.

• If the configuration was changed, click Save.

Configuration of Wired Communication

When used in wired mode (optional) the CCU-X provides 10/100/100 MBit wired networking according to IEEE-802.3. The Ethernet IP Address and the Ethernet MAC Address can be found on the Device Info page of the web interface.

• Click Configure Ethernet (wired) in the Navigation panel on the left to open the page.

• The sections for Ethernet IPv4 and Ethernet IPv6 shows the current Ethernet IP settings.
• In the Set Configuration section, select DHCP (selected by default) or static IP configuration.

• If the configuration was changed, click on Save.

Reset, Backup, or Restore Configuration

• Click Configuration in the Navigation panel.

  Reset Network Configuration

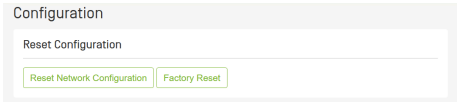

• Click the Reset Network Configuration button to reset the network settings to defaults. It can also be done by pressing the Config reset button on the device for 10 seconds.

• Click the Factory Reset button to reset the device to factory default. This resets the device network settings to default and removes all user-created settings such as the user output and uniformity calibrations.

  Backup Configuration


• Click the Download Network Configuration Files button and then give a file name to the configuration and select a desired location and save the file.

  Restore configuration


• Click the Select File button and then browse and select the saved configuration file to be restored. Then click Restore configuration to restore the configuration.

Update Firmware

It is recommended always installing the latest firmware versions on the IBA Dosimetry measurement devices as in general they improve the overall reliability, measurement accuracy, and IT security of the measurement system. If there is a new version of FW available for the device, you will be informed by IBA Dosimetry via an email.

• Download the latest version of firmware via IBA Service Portal: https://iba-portal.com (also see the ticket received for the exact link).
• Click System Update in the Navigation panel.

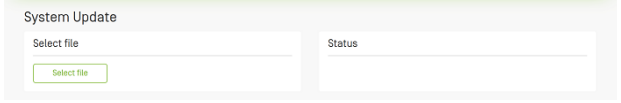

• Click the Select File button, then browse and select the new FW file.
• Click Start Update. The update can take up to five minutes and the device will restart afterwards.

CAUTION: CHECK FIRMWARE VERSION AND CHECKSUM
Before installation of a new firmware version (update), verify the displayed checksum, to ensure the authenticity and integrity of the received firmware file.

Download Logs

• Click Download logs in the Navigation panel.

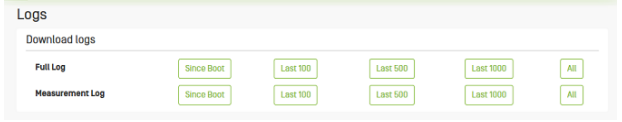

• Click the corresponding button to download the desired log files and save them in a desired location for further investigation.


It is recommended to check the logfiles regularly for the following :

• System error log of Linux system
• Sensor out of range warnings
• Client network activities (connect and disconnect)
• Measurement parameters (client activity)

Network Connection Troubleshooting

Installation Procedure

• Install the myQA Accept software on the PC (for more details concerning the install wizard etc., see myQA Accept Instructions for Use).
• Plug one end of an Ethernet cable to local network and the other end to one of the Ethernet port on the switch.
• For each device (CCU-X, PC), plug one end of the Ethernet cable to the device, and the other end to one of the Ethernet port on the switch.
• Connect the mains power cables to grounded mains power outlets.
• Attach the Drive Control Cable to the DRIVE CONTROL connector of the water phantom. Lock the connectors by tightening the two screws.
• Plug the Drive Control Cable into the DRIVE CONTROL input of the front of the CCU-X. Take care not to force it into position.
• Attach the remote control to the REMOTE CONTROL connector of the water phantom.
• Switch on power of the computer and the monitor. Wait until Windows has finished booting.
• Switch on power of the CCU-X. Wait until the device has finished booting
• Use the Z movement key on the remote control to move the servo upwards. Now remove the transportation protection.

CAUTION: REMOVING TRANSPORT PROTECTION
Do not remove transport protections when they are jammed between parts of the servo to avoid misalignment. Use the remote control to release the protection; do not move the axis manually.

Installing TMR Probe (Optional)

The TMR probe consists of a magnetostrictive sensor likewise used for the servo axis, combined with a magnetic float within an acrylic-damping pipe.

When the TPR / TMR option has been purchased with the water phantom initially, the TMR probe is normally already mounted in the water phantom.

However, if the TPR / TMR option is purchased later, follow installation procedure below:

• Ensure that the TMR probe with the float is inserted into the acrylic support tube. The label on the float must be oriented upwards.
• Mount the support tube with the TMR probe in the water phantom.

• Tighten the two fixation screws at the top of the TMR probe.



• Open the front housing of the water phantom connection box to get access to the back panel bar.
• Connect the cable from the TMR probe to the TMR input socket.
• Close the connection box housing and ensure that the cables will not be squeezed when doing so.

• Connect the phantom to the control unit and switch the power on.

  IMPORTANT NOTICE: CCU BOOT DELAY
  When a TMR probe has been mounted into the water phantom, the CCU will recognize this automatically and read-out all sensor calibration data first. When connected for the first time, this process can take up to 10 minutes.

• Push the Zeroing button at the remote control to enter the corresponding sub-menu.



• Verify that the float of the TMR probe is at its lowest position.

• Push the corresponding zero button to define the zero position of the TMR probe.



Installation Verification

After hardware installation, the overall system function should be verified. Before doing this, please refer to myQA Accept Instructions for Use for information on how to setup and define the equipment in the SW. The following functions should be verified:

• Servo movement
• Electrometer control
• High voltage

Servo Movement

After hardware installation, the overall system function should be verified. Before doing this, please refer to myQA Accept Instructions for Use for information on how to setup and define the equipment in the SW. The following functions should be verified:

• Servo movement
• Electrometer control
• High voltage

Servo Movement

Verify the servo movement functions as follows:

• Ensure that the CCU-X is switched on and that it is connected to the computer.
• Establish Ethernet connection via XX setup tool.
• When performed, close the XX setup program.
• Start the myQA Accept program.
• Define the equipment under Common Settings Equipment Setup (at least the controller should be defined).

• With the movement keys on the remote control, drive the servo mechanics to the following point: Middle of the phantom (position 0 on the rulers) in the horizontal dimensions X and Y, and upwards (e.g., position 160 mm) in Z.

  CAUTION MOVING PARTS (WATER PHANTOM)
  Maintain a safe distance and avoid touching the mechanics while it is in motion as this may cause injury.

• At this position, define isocenter and water surface with the remote control at the phantom. Refer to Section 3.1.2 for detailed information about how to use the hand control.
• Open the Measurement menu and pin the Controller window in the Measurement window.
• Click the Connect icon at the left menu bar to establish a connection between software and control unit.
• Choose Servo as the coordinate system in the Controller panel tab. Check that the displayed position is displayed as 0, 0, 160 mm (X, Y, Z).
• Select the Positioning panel to use the Go to drop-down menu to enter a position, e.g., 100, 100, 100 mm, and confirm two times by pressing the Return key at the computer keyboard.

Electrometer Control

• Ensure that the High Voltage (HV) in the CCU-X Control Panel is set to zero (Electrometer panel tab).

  WARNING HAZARDOUS VOLTAGE
  The HV outputs of the CCU-X-X provide hazardous voltages up to 500 V DC. Do not switch on mains power until all cables are connected. Always switch off the high voltage before connecting or disconnecting detectors.

• Connect detectors (recommended: CC04 ionization chambers) to the Field and Reference inputs on the CCU-X by usage of the two 5 m detector extension cables.
• Move the field detector to the central beam, at approx. Dmax depth.
• In the Electrometer panel, set a High Voltage of +300 V for both channels and select Ratio.
• Press the Background button to perform a background measurement. Wait until the measurement is finished.
• Turn on the accelerator.
• When the beam is stabilized, press the Normalization button. Wait until the normalization procedure has finished.
• Turn off the accelerator.
• Now unselect Ratio in the Controller panel.
• Define a profile scan in the Queue Setup window.
• Run the scan with accelerator off in the Measurement window. Check that the displayed offset signal (background) is low: not more than 1 pA. The current is updated only under measurement.
• In the CCU-X Control Panel, under Channel, select Ratio.
• Turn on the accelerator.
• Perform the profile scan.
• Turn off the accelerator.
• Check that the profile scan was properly performed.

HV Test on CCU-X

WARNING: HAZARDOUS VOLTAGE
The HV outputs of the CCU-X provide hazardous voltages of up to 500 V DC. Never touch the servo (at earth potential) and the TNC input connector on the CCU-X at the same time.

• In the Controller panel of myQA Accept SW, switch off the high voltage by clicking HV Setup button (if the high voltage is on).
• Disconnect the detectors.
• Connect a high impedance voltmeter to the Field Sensor and Reference Sensor inputs of the CCU-X.
• In Common Settings - Equipment Setup – Detectors window, select a detector and set the Default Bias Voltage value between -300 V and +300 V.
• In the Controller panel, turn on the high voltage by clicking the HV Setup button.
• Measured voltage with the voltmeter. With 100 M impedance, the measured voltage should be the same the value set for the Default Bias Voltage with a few percent deviation.
