Tasks Page

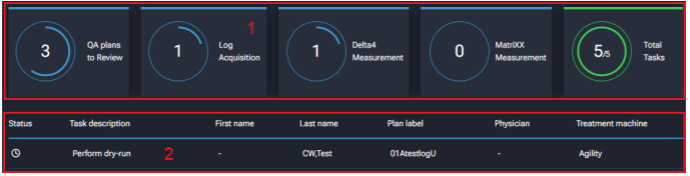

The Tasks page displays all tasks existing in the SW. Tasks are organized into five groups (1); tasks from the
selected group will be displayed in a list (2). The tasks in the same group have the same task type.
- Click on a Task from the list to open the Patient QA Report to perform QA tasks (see Chapter 5).
Table 4.3. Task groups
| Task | Description |
QA Plans to Review | Each task on this page represents a plan ready to be reviewed and approved / rejected for treatment. |
Log Acquisition | Each task on this page represents a request to upload a log-file. The user viewing this page while at the treatment machine can then acquire the requested logs and upload them to myQA iON. |
Delta4 Measurement | Each task on this page represents a request to upload a Delta4 Measurement. The user can then acquire the requested Measurements and upload them to myQA iON. |
MatriXX Measurement | Each task on this page represents a request to upload a MatriXX Measurement. The user can then acquire the requested Measurements and upload them to myQA iON. |
Total Tasks | All tasks in the SW. |
Table 4.4. Task list information
| Column | Description | |
QA Status of the plan | Waiting for measurements (changes to black in light mode) | |
| No issues detected (passed) | ||
| Evaluate (Warning) | ||
| Error (failed) | ||
Task description | Type of the task | |
First name | First name of the patient | |
Last name | Last name of the patient | |
Plan label | User-defined label for treatment plan | |
Physician | Referring physician or physician of record | |
Treatment room | Name of the machine or treatment room name | |
