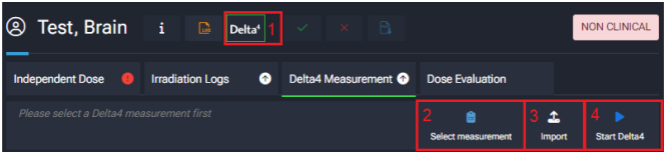

- On the Patient Plan Analysis page, a Delta4 measurement can be requested by clicking the Request
Delta4 button (1). - A task is then created on the task screen and the Delta4 Analysis tab is activated.
- The uploaded measurement can be accessed by clicking the Select measurement button (2).
To get the Delta4 results, either select a measurement and click the Import button (3) or click Start to
open the Delta4 application (4).Note: Imported Delta4 measurements use the Plan Name, instead of the Plan Label. - Once the Delta4 application is open, the measurement workflow can be performed.
- In the Delta4 application, click the Export measurement button to export the results to myQA iON.
The results of the Gamma Index Evaluations will be displayed in myQA iON.
Please note, the following results are an example of the Gamma Index Evaluations and associated details that could be shown on a typical Delta4 page.

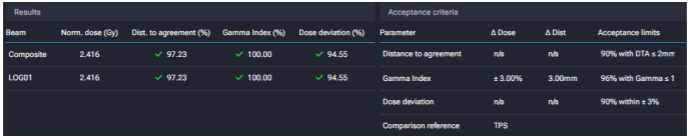

Summary table showing the Gamma Index Evaluations:

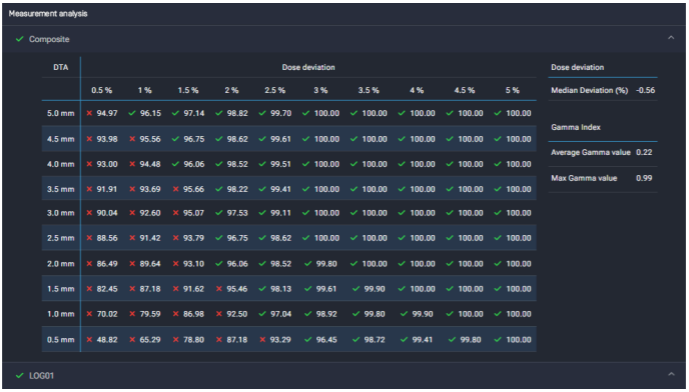

Detailed views of each evaluation (i.e., Composite view and individual beams):
