Measurements performed in myQA Machines (automatically available in Data import workspace) or myQA FastTrack (if saved to database) can be exported through myQA Platform.

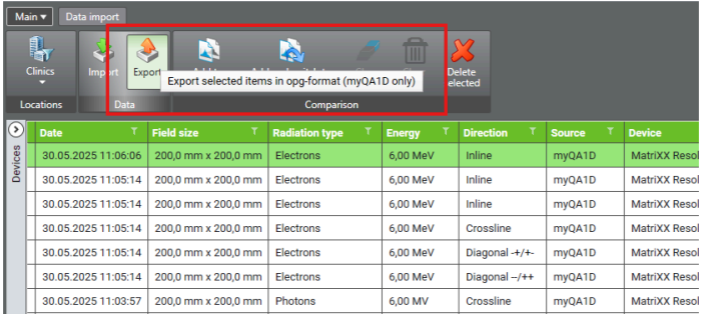

- To export profiles in OPG format, go to the Data import page.
Select the profiles from the list and click the Export button.
Note: The Export button is only enabled for data with source type myQA 1D.
CAUTION: PROFILE DIRECTION IS NOT INCLUDED IN EXPORTED OPG FILES
When exporting profiles using the OPG format from within the Data Import workspace in myQA Platform, due to the predefined file format the information about the profile direction is not included in the exported file.
When those profiles are imported to myQA FastTrack, automatically the scan direction Crossline will be assigned. This may lead to wrong analysis results and thus to wrong conclusions about the machine status.
