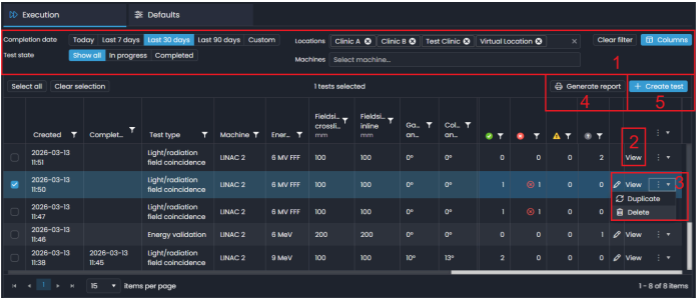

The user can configure which columns (1) are displayed and which are not. By default, all available columns are shown.
- Execution data: creation date, completion date, and test type.
- Beam setup: machine, energy, field size, gantry angle, collimator angle, wedge/applicator
- Device setup: SDD, phantom, in gantry holder, and device rotation
- Test result: number of parameters within every test with different test statuses (pass, fail, warning, undefined).
Additional details about test execution (e.g., numerical results of parameter analysis), as well as execution notes, can be visualized on demand (2).
The user can also:
- Delete one or more tests, and duplicate tests (3).
- Create a report about one or more tests (4).
- Create a new test from scratch (5).
To set a QA Test as a Reference, go to the Explorer page, and the reference can be set there. See Chapter 9.
Filter QA Tests

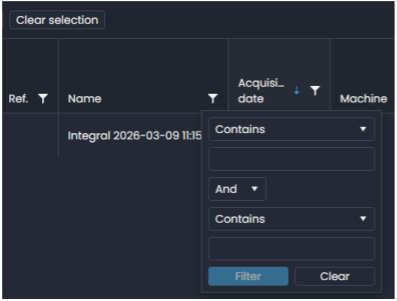

- Click on the Filter icon for a column to filter QA Tests based on:
- Completion date
- Test type
- Mahine used
- Energy
- Fieldsize (Crossline and Inline)
- Gantry, Collimator, and Wedge angle
- Wedge type
- Applicator
- SDD
- Phantom type
- Status
Click the filter button to apply the selected filter.
- Click on the filter icon > Clear to clear the currently applied filter.
Generate a QA Test Report
To Generate a QA Test Report:
- Review test execution history

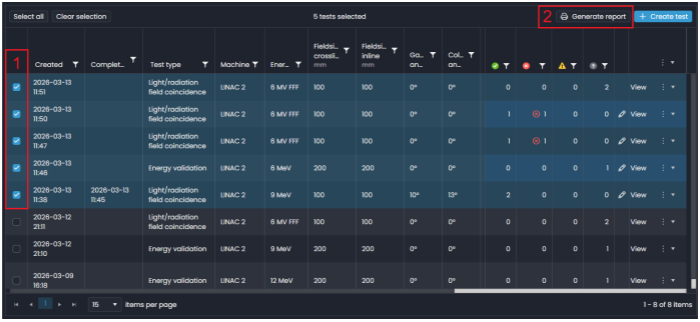

Select the tests to be included in the report. Click the Generate Report button.
- Tests are ordered in the report accordingly:
- Machine (alphabetical)
- Test type (output, profiles, light/radiation, energy)
- Beam setup (gantry angle, field size, collimator angle)
Beside QA tests definition and results, the report can include the following items (if specified in General settings):
- Institution logo
- Information (e.g., name and address)
- Test execution notes

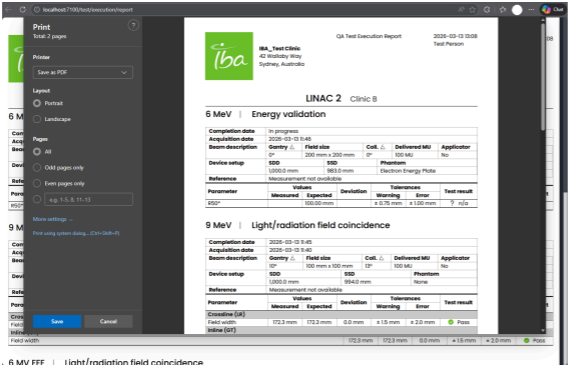

- Print the report using browser functions (which typically allows printing on paper or saving a PDF in a selectable location).
