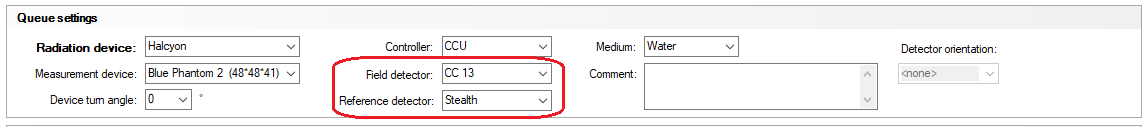

Question
How should I exchange chambers & diodes during scanning?
Answer
Before disconnecting the chambers from the CCU (Common Control Unit), it is recommended to turn off the voltage to the channel(s).
Step 1
Within the Controller panel choose the Electrometer panel tab. Choose the Field tab, and click the "Off" option under Output. Repeat the process for the Reference channel.
Step 2
If more scans are to be conducted, connect the appropriate chambers back to the CCU.
***Ensure the correct detectors are selected in the Queue Setup section prior to applying voltage to either channel as damage to the detector could occur***
Step 3
Turn the output back on for the new detectors and set the appropriate voltages if needed.
