Question
How to configure the MatriXX RESOLUTION network settings?
Answer
Step 1
Connect the MatriXX RESOLUTION using an ethernet cable directly to your computer.
Step 2

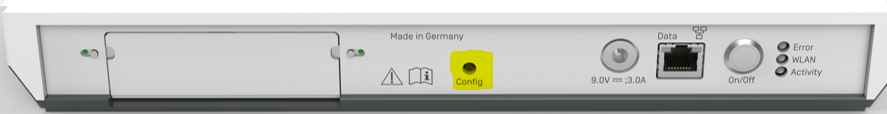

Turn on the device and press the Config - button for one second. The green Activity LED will start blinking.
Step 3
Open your browser and type: http://169.254.22.11/
Step 4

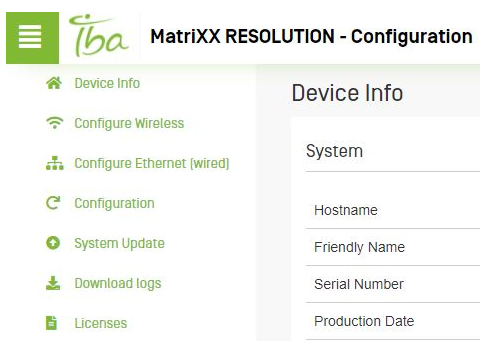

The MatriXX RESOLUTION Configuration page will open:
User: admin, Password: admin
Step 5
If you exported your network configuration please go to Configuration and click on Select File under Restore configuration. Look for the correct file and upload it. When the file was uploaded successfully our network settings are restored.
In case you did not export your network configuration please go to Configure Wireless and Configure Ethernet. Choose a WLAN and set the correct IP address and network settings. Confirm your changes by pressing Save.
The chosen WLAN, the IP address and network mask was changed.
